| VALVES | ABS-07 | ||

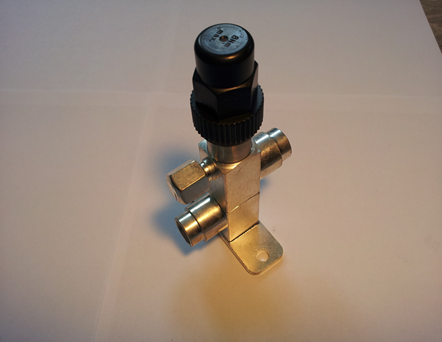

| BRACKET VALVES (SOLDER JOINT) | |||
| CODE NO. | SIZE | In.Dia | Bolt Hole | Hole to Hole | Out.Dia |
|---|---|---|---|---|---|
| BRKT0308 | 3/8 | 3/8 | 6.4 | 63.0 | 3/8 |
| BRKT0304 | 3/4 | 3/4 | 6.4 | 63.0 | 3/4 |
| BRKT0102 | 1/2 | 1/2 | 6.4 | 63.0 | 1/2 |
| BRKT0508 | 5/8 | 5/8 | 6.4 | 63.0 | 5/8 |
| BRKT0708 | 7/8 | 7/8 | 6.4 | 63.0 | 7/8 |
| BRKT1108 | 1-1/8 | 1-1/8 | 6.4 | 63.0 | 1-1/8 |
| BRKT0104 | 1/4 | 1/4 | 6.4 | 63.0 | 1/4 |
